Overview

The frontend of the sample application uses Angular, while the backend runs on Node.js / Express – both written in TypeScript. In general, you can use any web tech stack to integrate passkeys.

We use Corbado’s passkey-first web components to handle authentication, while keeping Amazon Cognito as core user management system in place. Thereby, we leverage AWS Lambda functions for custom authentication flows in Amazon Cognito.

The structure of the article looks as follows:

‍

See the final repository on GitHub.

Disclaimer: the main purpose of this tutorial is the integration of passkey authentication in Amazon Cognito and build a working prototype. Session management / API endpoint authorization is only covered on a high-level and needs to be adapted for further usage. Note that some settings need to be made in Amazon Cognito to make the example work out-of-the-box. Take a look at 1. Setup of Amazon Cognito and 3. Setup AWS Lambda functions with custom auth flows to check these settings. These AWS Lambda functions are used by Corbado to hook into the authentication flow, as Amazon Cognito heavily relies on passwords (there’s not even a way to export password hashes), so a fully passwordless setup out-of-the-box is otherwise not possible in Amazon Cognito.

Quickstart

If you want to see the results directly, we provide a docker file. You only need to add the required environment variables and can jump start with:

Note that you need to provide Amazon Cognito and Corbado environment variables to get things working. Besides, you may also need to copy the AWS CLI credentials from .aws/credentials (see docker-compose.yml).

If you have already setup Amazon Cognito, you can skip this step and go directly to step 2.

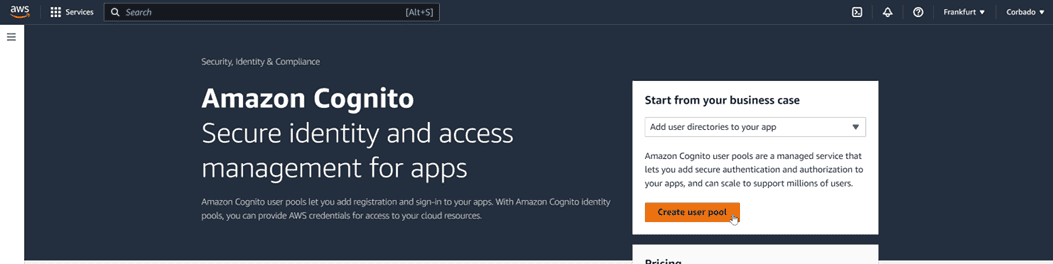

We set up a basic user pool in Amazon Cognito with the following properties (most are default). We use this setup because most of the current Amazon Cognito implementations we’ve seen are configured this way. We would generally recommend higher security levels.

• Authentication with email and passwords
• No federated identity providers or social logins
• Default password policy
• No MFA
• Self-service account recovery
• Self-service sign-up
• No custom attributes
• Email handling by Cognito / AWS SES
• Confidential client (as authentication will be handled by our backend in Node.js / Express)

Select "Email" as sign-in option:

Define the password, MFA and recovery settings:

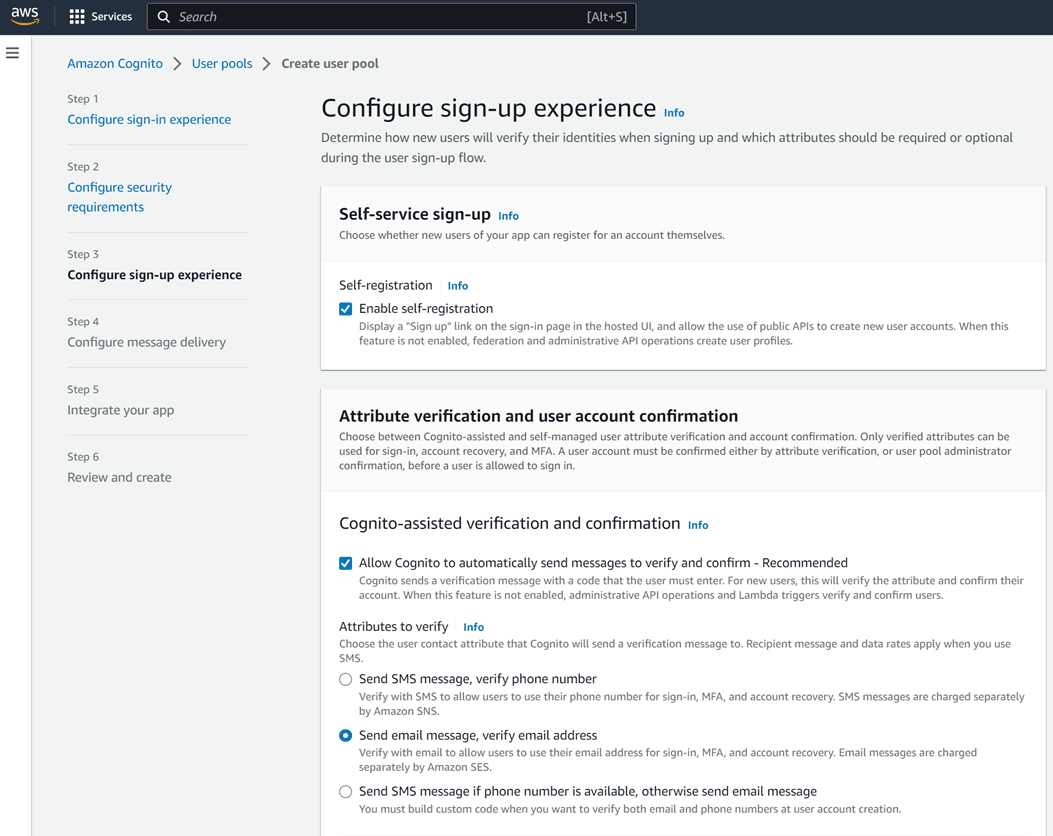

Configure the sign-up experience:

To keep things simple, just use the Amazon Cognito email service:

Define a user pool name:

Select "Confidential client" as requests to Amazon Cognito will be made via our Node.js backend:

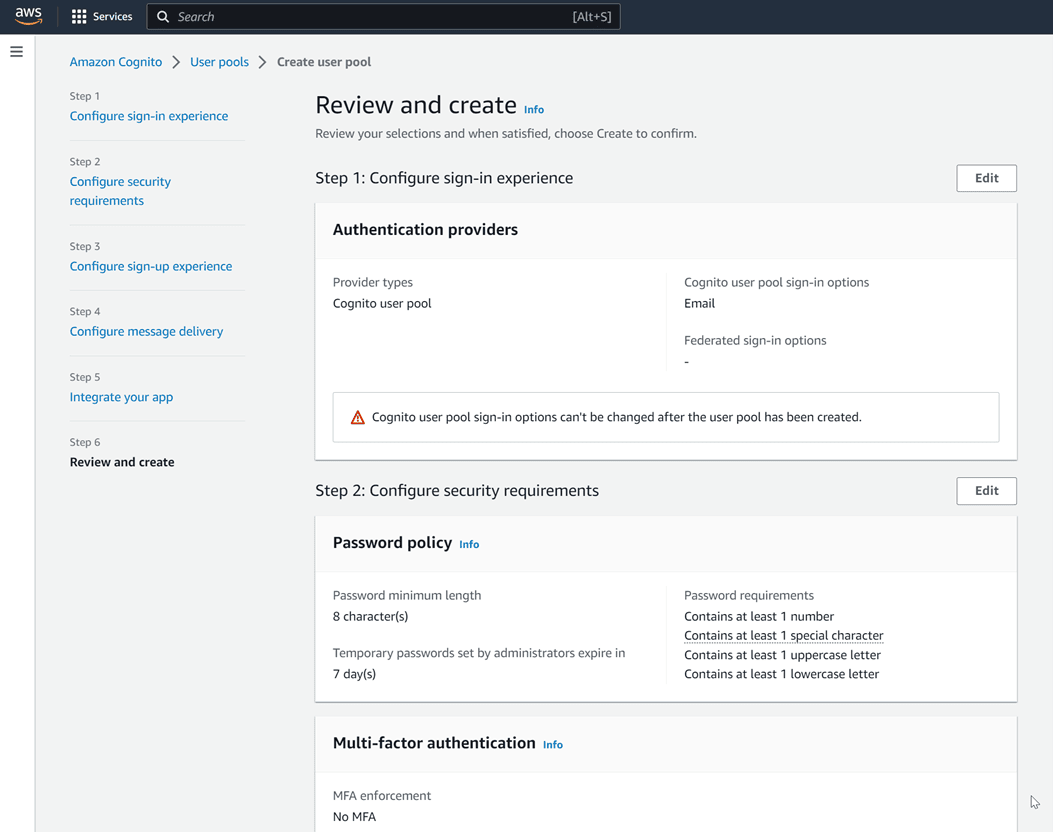

Review everything and create the user pool:

The current frontend is a simple web application that has a login / sign-up view and a logged-in view.

The structure of the frontend code follows a typical Angular project structure (only most important files are described below, see GitHub repository for full code):

The frontend is generated with Angular CLI version 15.2.7. If not done yet, install it via:

Install all other packages by running the following command in the ./frontend-angular directory:

You should see the following screen when you go to http://localhost:4200 in your browser:

The backend’s main purpose is to communicate with Amazon Cognito for logging and signing up users. We use the AWS SDK “@aws-sdk/client-cognito-identity-provider” to communicate with Amazon Cognito.

The structure of the backend code follows a typical Node.js / Express project structure (only most important files are described below, see GitHub repository for full code):

Install all required packages by running the following command in the ./backend-nodejs directory:

Please create a .env file in the ./backend-node.js directory and set the values for COGNITO_REGION, COGNITO_USER_POOL_ID, COGNITO_CLIENT_ID, COGNITO_CLIENT_SECRET and COGNITO_JWKS (JWKS stands for JSON Web Key Set and contains keys that are used to verify JSON Web Tokens, JWTs, in the session management). In docker-compose.yml, we added AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY, which are optional here and can also be provided in other ways.

They can be obtained in the management console in Amazon Cognito:

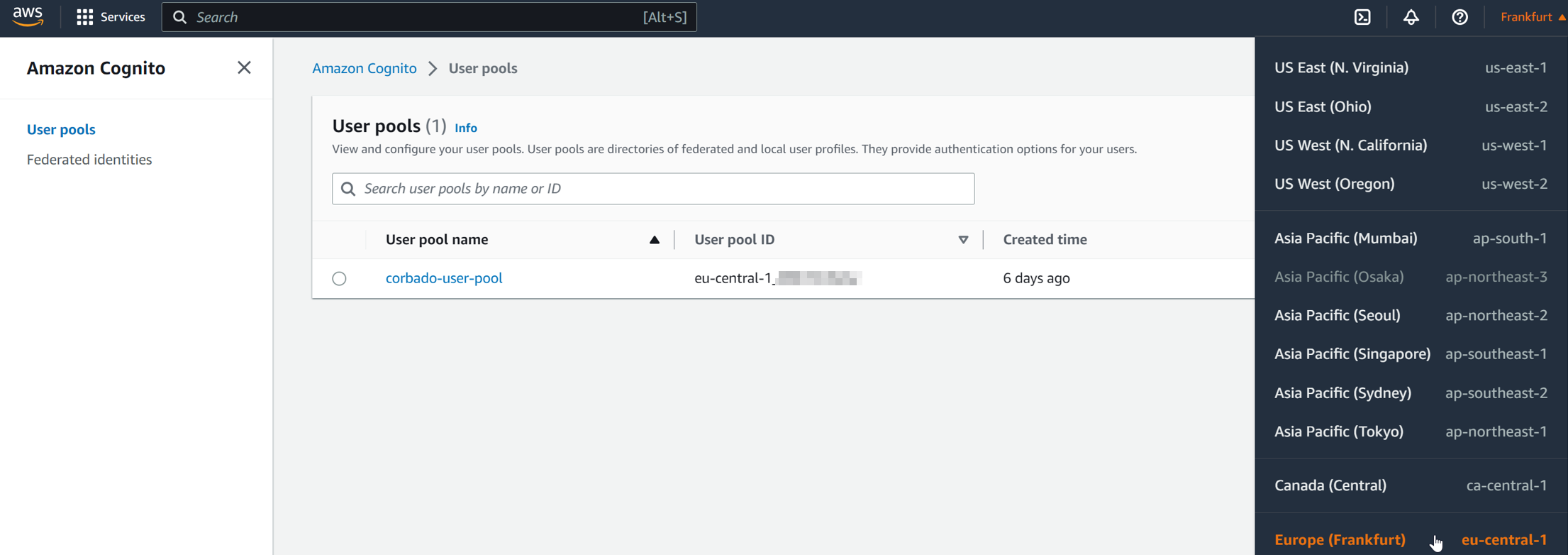

COGNITO_REGION: Amazon Cognito > Navigation bar

COGNITO_USER_POOL_ID: Amazon Cognito > User pools

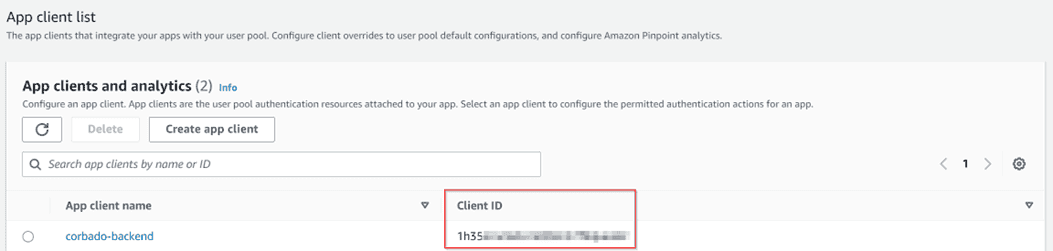

COGNITO_CLIENT_ID: Amazon Cognito > User pools > corbado-user-pool > App integration (on the bottom)

COGNITO_CLIENT_SECRET: Amazon Cognito > User pools > corbado-user-pool > App client: corbado-backend

COGNITO_JWKS: Open the following URL in your browser: https://cognito-idp.${region}.amazonaws.com/${userPoolId}/.well-known/jwks.json and copy the value for “keys” (should be an array):

Start the local development server that runs on port 3000:

If everything works fine, you should see the following output in the terminal:

Currently, Cognito is set up with username / email and password as authentication. Coming up with your own authentication logic or an external authentication provider, like Corbado, requires custom auth flows in Amazon Cognito. This implies the setup of AWS Lambda functions to handle the authentication process. AWS Lambda functions are small blocks of code that can be run in the cloud without requiring the user to manage a server or infrastructure, and they are designed to respond to specific events or requests. When an AWS Lambda function is triggered, AWS automatically spins up a compute environment to run the code, and then shuts it down when the function is finished. This makes it easy to build scalable, event-driven architectures that are both flexible and cost-effective, since users only pay for the compute time that their functions use.

Amazon Cognito provides a good explanation of the flow used for custom authentication here.

The only change we make in regard to this chart is that the “Challenges answers” / “respondToAuthChallenge” is not really executed, as the authentication with Corbado happened even before the Lambda functions are triggered. Still, these calls in the code are made, as they are required by Amazon Cognito.

Moreover, the following requirements apply in our use case:

• Existing users should still be able to login with their passwords (in case they do not want / cannot use passkeys or as a fallback in case of errors).
• New users will follow a passkey-first approach: if possible, they create and use a passkey and their default fallback option are passwordless email magic links.
• Session management for all users should still be handled by Amazon Cognito, as two systems for session management would require too much maintenance.
• After sign-up, users are automatically logged into the application to improve the conversion rate (the email confirmation should be skipped for now).

Go to your AWS Lambda console and create three AWS Lambda functions:

Create the first function, name it like “defineCorbadoAuthChallenge” and add the following code. It basically triggers the custom authentication flow.

Create the second function, name it like “createCorbadoAuthChallenge” and add the following code. This AWS Lambda function is directly triggered after the “defineCorbadoAuthChallenge” and creates a custom challenge (we do not make real use of the challenge, see above).

Create the third function, name it like “verifyCorbadoAuthChallenge” and add the following code. It verifies the response (we not really verify the response, but just verify if the call and response of the AWS Lambda function are successful).

Afterwards, you should see three AWS Lambda functions in your AWS Lambda console:

These AWS Lambda functions are very basic and lean. You can create loggers or work with console.log() to get a better understanding what is happening under the surface. We also recommend checking out Amazon CloudWatch as it has good capabilities for logging and debugging. It might be quite difficult to get comfortable with it at first, but once you understand it, it’s easy to handle:

Open “Log groups” and click on the AWS Lambda function you want to check:

Click on the log stream where you want to see details:

Now you can see the log events:

Add an AWS Lambda trigger at Amazon Cognito > User pools > Corbado-user-pool > User pool properties:

Click on “Add Lambda trigger”

• Select “Custom authentication”
• Select “Define auth challenge”
• Select “defineCorbadoAuthChallenge”

‍

Create two additional Lambda triggers for the two remaining Lambda functions in the same way:

1. Create auth challenge -> createCorbadoAuthChallenge
2. Verify auth challenge response -> verifyCorbadoAuthChallenge

To find out if a user was created via Corbado or via the old Amazon Cognito sign-up component, we add a custom attribute “createdByCorbado” to Amazon Cognito. It is needed to identify users who could fall back to a password they might know, or offer email magic links to all other users, who have never set or seen a password.

Select your user pool:

Click on "Sign-up experience":

Click on "Add custom attributes":

Add the new attribute with name “createdByCorbado”, leave all other setting on default and click on “Save changes” (unfortunately, there’s no Boolean datatype).

Now everything is set up to add Corbado to the app. The flow looks as follows:

1. A new user signs-up or an existing user logs into the Corbado web component and creates a passkey (passkey and device management is handled by Corbado).
2. The user is created / checked in Amazon Cognito.
3. AWS Lambda functions handle the custom auth flow and generate a session for the user.
4. The user is logged in and redirected.

Currently, the issue with Amazon Cognito is that it heavily relies on passwords. For new users, you need to setup a password, otherwise they neither can be create nor sessions can be generated. Therefore, we generate a random password that the user never sees and store the hashed and salted version in Amazon Cognito. Further, we automatically confirm the user account via our backend.

The following scenarios are covered by our integration:

1. Existing password-based users created prior to passkeys integration want to login: We let them login with their passwords and offer them to create passkey after their first login. Afterwards, passkeys are leveraged as preferred login method, but the password can still be used as a fallback login method.
2. New users with passkey-ready devices: We create a passkey for them directly in the first step and will use this passkey for subsequent logins. As fallback method, email magic links are used.
3. New users with non-passkey-ready devices: To stay future-proof, we offer passwordless email magic links as authentication method.

We start by heading over to the Corbado developer panel and create an account. We are welcomed by this screen:

We click on “Integration guide” to do everything step by step:

We integrate via “Web component”, so that’s what we select.

Also, we have a system with an existing user base, so we click 'Yes'. Afterwards, we find ourselves at the overview of the developer panel (you need to confirm your account via email if it's your first time).

Head over to “Getting started” > “Integration guide”. This guides us through all the steps necessary for the integration to work.

In step 1, we create an API secret. We need the project ID and the generated API secret later in order to communicate with Corbado's API. Also, we need to configure our authorized origin. The authorized origin is the browser URL from the site where the web component is integrated (with protocol and port but without path). We need it for CORS (cross-origin request sharing). In our case, we set it to http://localhost:4200.

In the second, optional step, we configure the webhook. This is needed, so Corbado can communicate with our backend, e.g. for checking if a username and password of an existing user match. More details on that later.

We will later set up our webhook at http://localhost:3000/api/corbado/webhook with a webhook username and webhook password as credentials, so we can already enter that here.

In step 3, we add our Application URL, Redirect URL and Relying Party ID. The Application URL is the URL in the frontend where the web component runs. For example, it’s used to forward users to the web component again after they clicked on an email magic link.

The Redirect URL is the URL that receives Corbado’s session token as GET parameter, after Corbado has successfully authenticated a user, so that a session can be started. We implement our Redirect URL at http://localhost:4200/auth later, but we can enter it here already.

The Relying Party ID is the domain where we bind our passkeys to. The domain in the browser where a passkey is used must be a matching domain to the Relying Party ID. As we test locally, we set the Relying Party ID to localhost.

Just like that, the project in Corbado is set up!

We add the Corbado script into our HTML head in index.html:

Then, we replace the existing login / sign-up components with the Corbado web component.

Next, we add the CUSTOM_ELEMENTS_SCHEMA to app.module.ts.

Entering http://localhost:4200 in the browser should give us this view:

To handle the Redirect URL and send the corbadoSessionToken from the Redirect URL to our backend for verification, we add the following code to auth.component.ts:

Lastly, we add the corbadoSessionVerify function to our AuthService:

At first, we add Corbado environment variables to our .env file:

• CORBADO_PROJECT_ID: obtain it from here
• CORBADO_API_SECRET: obtain it from here
• CORBADO_WEBHOOK_USERNAME: obtain it from here
• CORBADO_WEBHOOK_PASSWORD: obtain it from here
• (Optional) CORBADO_CLI_SECRET: obtain it from here

Then, we install the required Corbado packages with:

Next, we create a new controller “authCorbadoController” in the backend. It handles

• “sessionVerify”: It receives the corbadoSessionToken from the frontend and verifies it at the Corbado API. Moreover, we check if the user exists in Amazon Cognito and create him if he does not so. Eventually, we create the Amazon Cognito session.
• “handleWebhook”: It checks if a user exists in Amazon Cognito already and handles the password authentication for existing users.

Moreover, we add the corresponding new routes to app.ts:

Furthermore, we add the methods “verifyPassword”, “getUserStatus”, “createSession” and “createUser” to authCognitoController.ts as they are required to make Corbado interact with Cognito.

To better structure our code, we add a utils folder and constants.ts

as well as helper.ts

That’s it, you have successfully made all necessary integration steps.

If you want to test your application locally, you need to use the Corbado CLI (check the docs for the quick setup). We run the CLI with:

The reason behind is that Corbado, needs to send a webhook request to your local application, which is by default not reachable from the public. Corbado CLI creates a tunnel, so that your local application can receive these webhooks. If you’re developing on a live server (e.g. staging), the Corbado CLI is not required.

Accessing http://localhost:4200 in our browser, should now display the following screen after entering the email:

1. Existing password-based users want to login:

2. New users with passkey-ready devices:

3. New users with non-passkey-ready devices:

While doing the integration, AWS released a first prototype of an own in-house passwordless sample application. Just having a look at the code repository showed that the code base and adaptions to make on your own are massive. The code is not well documented. It’s clearly not ready for production and without the CDK file or large AWS experience, the setup will be a nightmare. It took us quite long to get it up and running, but we managed it eventually. It's also not completely for free as AWS Key Management Service (KMS) is used, where one KMS key currently is $1 per month. Also, you’re heavily locked into AWS infrastructure, so integrating it into your own tech stack seemed to be quite laborious.

In this tutorial, we’ve learned how to successfully integrate passkey authentication into an existing Amazon Cognito setup with Corbado. We leveraged Amazon Cognito custom auth flows to integrate the external authentication provider and showed the setup required to smoothly transition existing users to passkeys, while still offering passwords as fallback.

Due to our experiences with Amazon Cognito: if you are building a new application or website, we wouldn’t recommend going with Cognito as it’s clearly not in the focus of AWS and does not provide a passkey-first or passwordless-first experience. This is according to our and Google’s believe essential, especially on mobile or native apps.

‍
